BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST
BUILT FOR ABUSE AND ROWDY RIDING
ENDURO-STYLE RIDING AND RACING
BIG BIKE, BIG WHEELS, BIG FUN

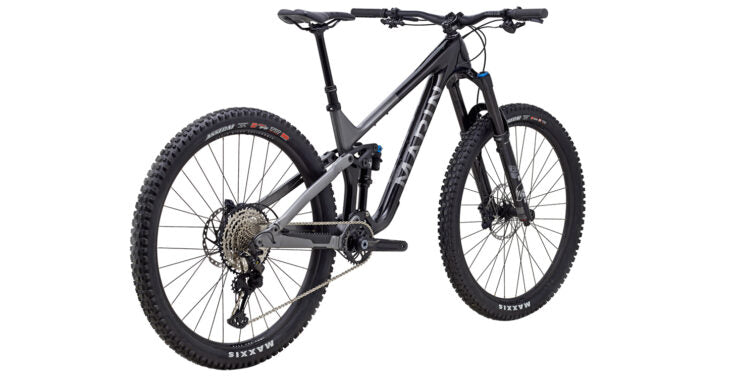

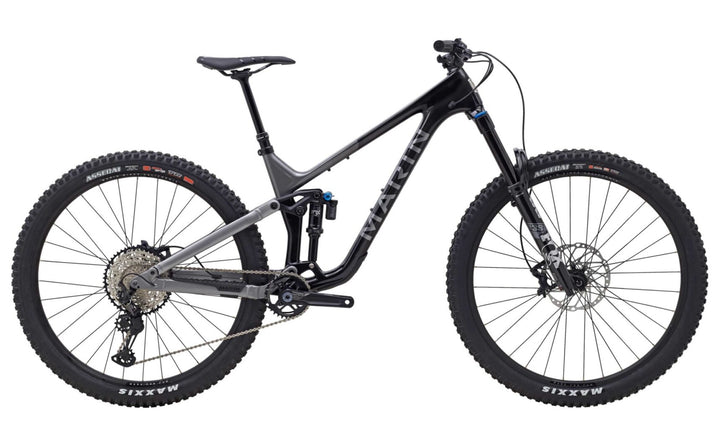

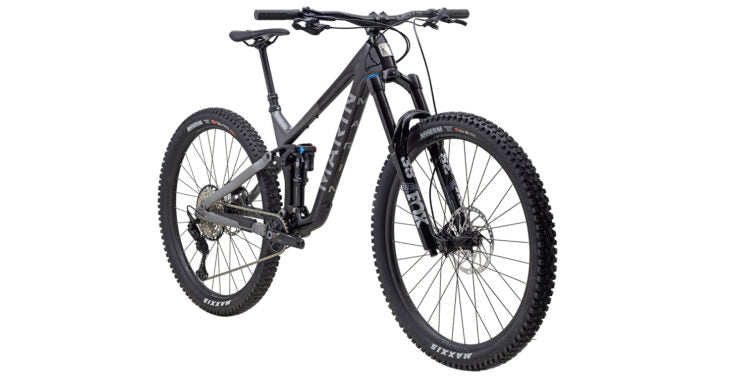

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Key upgrade from Alpine Trail Carbon 1:
- Fox 38 Performance Elite/DPX2 Performance EVOL suspension
- Shimano SLX/XT drivetrain & FSA Gradient crankset
- Shimano SLX 4-piston brakes
- Shimano HB-MT510B rear hub
Specifications
-
FRAME
All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
-
FORK
Fox 38 Performance Elite, 160mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
-
REAR SHOCK
Fox Float DPX2, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount
-
RIMS
Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
-
HUB REAR
Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body
-
HUB FRONT
Shimano HF-MT410B, 110x15mm, Centerlock
-
SPOKE
14g Black Stainless Steel
-
TIRES
Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible
-
DERAILLEUR REAR
Shimano XT 12-Speed, SGS
-
DERAILLEUR FRONT
-
-
SHIFT LEVER
Shimano SLX 12-Speed, I-Spec EV
-
CRANKSET
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
-
BOTTOM BRACKET
MEGAEVO BB, 73mm BSA Threaded
-
CHAIN
KMC X-12 Silver and Black
-
CASSETTE
Shimano SLX M7100 Cassette, 12-Speed, 10-51T
-
BRAKE FRONT
Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor
-
BRAKE REAR
Shimano SLX, 4-Piston Hydraulic Disc, 180mm Rotor
-
BRAKE LEVERS
Shimano SLX Hydraulic, I-Spec EV
-
HANDLEBAR
Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back
-
STEM
Race Face Affect R 35, 50mm
-
GRIPS
Marin Single Clamp Locking
-
HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm, Shimano MT500 1x Lever, I-Spec EV
-
SADDLE
Marin Trail Speed Concept Pro
-
PEDALS
Not Included
-
EXTRAS
Bolt-On Thru-Axle, Downtube Protector
